Electric field mill for the simultaneous measurement of electric field strength and ion current diensity

Simple item page
dc.contributor.advisorVan Nierop, Johan Hen_ZA
dc.contributor.authorSellars, Malcolmen_ZA
dc.date.accessioned2016-10-03T04:03:04Z
dc.date.available2016-10-03T04:03:04Z
dc.date.issued1995en_ZA
dc.description.abstractIn the last 20 years, the use of high voltage direct current (HVDC) power transmission has grown considerably. With the increase in the number of HVDC transmission lines and in the transmission voltages, concern has increased as to possible health effects. For research on these health effects to be carried out, it is necessary to measure the electrical environment ofHVDC transmission lines accurately. The electrical environment ofHVDC transmission lines is characterised by: Electric field strength E [Vim];Ion current density J [A/m²] ;Space charge density p [C/m³ ]. Typical values measured under HVDC transmission lines are: E = lOkV/m, J = 400nA/m² . This thesis describes the design, construction and testing of an electric field mill capable of measuring electric field strength from 0 to 25kV/m (resolution = lOV/m), and ion current density from 0 to 1000 nA/m² (resolution = 20nA/m² ). The electric field readings have an accuracy of ±8%. The ion current density readings have an accuracy of ±12%. The field mill was tested in the laboratory in a simulated HVDC environment, and found to give good performance. For operation under a HVDC line, the field mill design will need some alterations to make it weatherproof. The design considerations described in this thesis should be helpful in the design of electric field mills in general.en_ZA
dc.identifier.apacitationSellars, M. (1995). <i>Electric field mill for the simultaneous measurement of electric field strength and ion current diensity</i>. (Thesis). University of Cape Town ,Faculty of Engineering & the Built Environment ,Department of Electrical Engineering. Retrieved from http://hdl.handle.net/11427/22039en_ZA
dc.identifier.chicagocitationSellars, Malcolm. <i>"Electric field mill for the simultaneous measurement of electric field strength and ion current diensity."</i> Thesis., University of Cape Town ,Faculty of Engineering & the Built Environment ,Department of Electrical Engineering, 1995. http://hdl.handle.net/11427/22039en_ZA
dc.identifier.citationSellars, M. 1995. Electric field mill for the simultaneous measurement of electric field strength and ion current diensity. University of Cape Town.en_ZA
dc.identifier.ris TY - Thesis / Dissertation AU - Sellars, Malcolm AB - In the last 20 years, the use of high voltage direct current (HVDC) power transmission has grown considerably. With the increase in the number of HVDC transmission lines and in the transmission voltages, concern has increased as to possible health effects. For research on these health effects to be carried out, it is necessary to measure the electrical environment ofHVDC transmission lines accurately. The electrical environment ofHVDC transmission lines is characterised by: Electric field strength E [Vim];Ion current density J [A/m²] ;Space charge density p [C/m³ ]. Typical values measured under HVDC transmission lines are: E = lOkV/m, J = 400nA/m² . This thesis describes the design, construction and testing of an electric field mill capable of measuring electric field strength from 0 to 25kV/m (resolution = lOV/m), and ion current density from 0 to 1000 nA/m² (resolution = 20nA/m² ). The electric field readings have an accuracy of ±8%. The ion current density readings have an accuracy of ±12%. The field mill was tested in the laboratory in a simulated HVDC environment, and found to give good performance. For operation under a HVDC line, the field mill design will need some alterations to make it weatherproof. The design considerations described in this thesis should be helpful in the design of electric field mills in general. DA - 1995 DB - OpenUCT DP - University of Cape Town LK - https://open.uct.ac.za PB - University of Cape Town PY - 1995 T1 - Electric field mill for the simultaneous measurement of electric field strength and ion current diensity TI - Electric field mill for the simultaneous measurement of electric field strength and ion current diensity UR - http://hdl.handle.net/11427/22039 ER - en_ZA
dc.identifier.urihttp://hdl.handle.net/11427/22039
dc.identifier.vancouvercitationSellars M. Electric field mill for the simultaneous measurement of electric field strength and ion current diensity. [Thesis]. University of Cape Town ,Faculty of Engineering & the Built Environment ,Department of Electrical Engineering, 1995 [cited yyyy month dd]. Available from: http://hdl.handle.net/11427/22039en_ZA
dc.language.isoengen_ZA
dc.publisher.departmentDepartment of Electrical Engineeringen_ZA
dc.publisher.facultyFaculty of Engineering and the Built Environment
dc.publisher.institutionUniversity of Cape Town
dc.subject.otherElectrical Engineeringen_ZA
dc.titleElectric field mill for the simultaneous measurement of electric field strength and ion current diensityen_ZA
dc.typeMaster Thesis
dc.type.qualificationlevelMasters
dc.type.qualificationnameMSc (Eng)en_ZA
uct.type.filetypeText
uct.type.filetypeImage
uct.type.publicationResearchen_ZA
uct.type.resourceThesisen_ZA
Files
Original bundle
Now showing 1 - 1 of 1

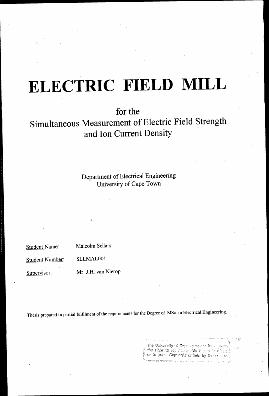

Thumbnail Image
